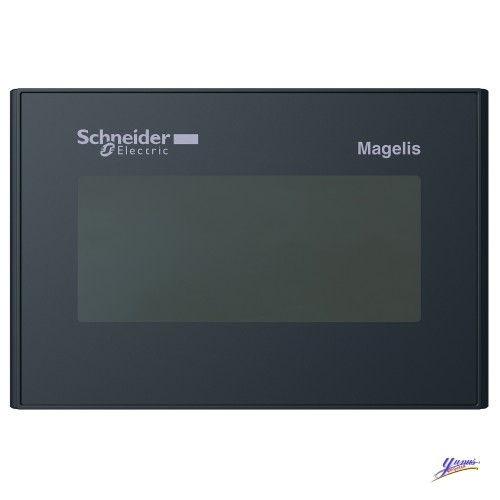

Schneider HMISTO501 Touch panel screen 3''4 Monochrome W/P/R for Zelio,HMISTO501, Schneider
Schneider HMISTO501 Touch panel screen 3''4 Monochrome W/P/R for Zelio
| range of product |
Magelis STO & STU
|
|
|---|---|---|
| product or component type |
Touch panel screen
|
|
| software designation |
Vijeo Designer
|
|
| operating system |
Magelis
|
|
| processor name |
CPU RISC
|
| display size |
3.4 inch
|
|
|---|---|---|
| display type |
Backlit monochrome STN LCD
|
|
| background colour |
White, pink and red
|
|
| display resolution |
200 x 80 pixels
|
|
| touch panel |
Analogue
|
|
| backlight lifespan |
10000 hours with red
50000 hours with pink 50000 hours with white |
|
| brightness |
8 levels
|
|
| contrast |
16 levels via touch panel
|
|
| character font |
ASCII
Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean Taiwanese (traditional Chinese) |
|
| [Us] rated supply voltage |
24 V DC +/- 20 %
|
|
| inrush current |
30 A
|
|
| local signalling |
1 LED with green for normal operation
|
|
| power consumption in W |
5 W
|
|
| number of pages |
Limited by internal memory capacity
|
|
| processor frequency |
333 MHz
|
|
| memory description |
Application memory, 16 MB
Back up of data, 128 kB |
|
| integrated connection type |
1 USB 2.0 type mini B
1 USB 2.0 type A Removable screw terminal block connector power supply 9-pin terminal block connector serial link with RS232C interface |
|
| supply |
External source
|
|
| realtime clock |
Access to the PLC real-time clock
|
|
| downloadable protocols |
Zelio
|
|
| range compatibility |
Zelio Logic
|
|
| fixing mode |
By 2 spring clips on 1.6...5 mm thick panel
|
|
| enclosure material |
PPT
|
|
| marking |
CE
|
| immunity to microbreaks |
3 ms
|
|
|---|---|---|
| standards |
EN 61131-2
FCC Class A IEC 61000-6-2 UL 1604 UL 508 |
|
| product certifications |
CE
C-Tick cULus UL Class 1 Division 2 T4A UL Class 1 Division 2 T5 |
|
| ambient air temperature for operation |
0...50 °C
|
|
| ambient air temperature for storage |
-20...60 °C
|
|
| relative humidity |
0...90 % without condensation
|
|
| operating altitude |
<= 2000 m
|
|
| IP degree of protection |
IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529 |
|
| NEMA degree of protection |
NEMA 4X front panel (indoor use)
|
|
| shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27
|
|
| vibration resistance |
+/- 3.5 mm (f = 5...9 Hz) conforming to IEC 60068-2-6
1 gn (f = 9...150 Hz) conforming to IEC 60068-2-6 |
|
| electromagnetic compatibility |
Resistance to radiated electromagnetic fields : 10 V/m
