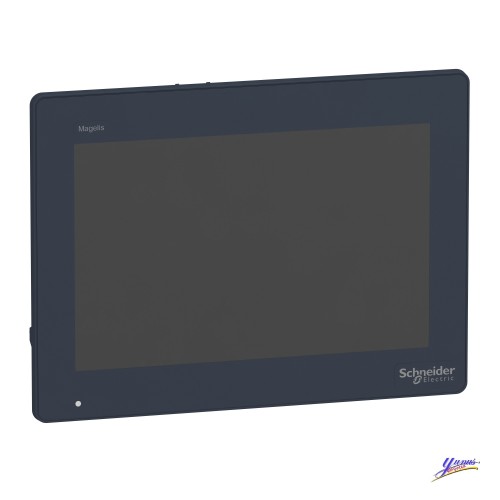

Schneider HMIPSOS752D1801 S-Panel PC Optimized SSD W15 DC Windows 10

Main
range of product	Magelis iPC
product or component type	Multi-touch screen
processor name	Intel Atom E3827 dual core 1.75 GHz
chipset type	Intel Atom SoC
free slots	1 Internal SATA HDD/SSD 1 CFast
display size	15.6 inch
display colour	16777216 colors
luminance	300 cd/m²
pixel resolution	4096 x 4096
video controller type	Intel HD Graphics
operating system	Windows 10 IoT Enterprise 64 bit multi-language
software package	EcoStruxture secure connect advisor annual subscription cyber security license not included EcoStruxure operator terminal expert run time HMI license not included EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only EcoStruxure augmented operator advisor server augmented operator license not included

Complementary
number of points	5
terminal type	Touchscreen display
memory type	RAM DDR3 4 GB internal
data storage equipment	128 GB SSD extension back side for 1500000 h
aspect ratio	16:9
display type	LED Colour TFT LCD
display resolution	1366 x 768 pixels WXGA
backlight lifespan	50000 hours
view angle horizontal x vertical	150 x 140°
touch panel	Projected capacitive technology (PCT)
type of cooling	Fanless Passive
watchdog timer	1...255 ms
number of slots	1 mini PCI Express full-size
[Us] rated supply voltage	100...240 V AC with additional adaptor HMIYPSOMAC1 24 V DC +/- 20 %
[In] rated current	1.7 A
mechanical robustness	7H hardness anti-scratch
local signalling	Buzzer Green LED for on Orange LED for stand-by
function available	Operate with water on screen
width	419.7 mm
height	269 mm
depth	86 mm
cut-out dimensions	412.4 (+/- 0.7) x 261.7 (+/- 0.4)
product weight	3.9 kg

Environment
IP degree of protection	IP66 front panel
product certifications	CE CCC C-Tick RCM EAC AS/NZS
standards	UL 60950 IEC 61000-6-2 FCC part 15 class A CSA C22.2 No 60950 CISPR 11 IEC 61000-6-4 IEC 60950
directives	2006/95/EC - low voltage directive 1907/2006/EC - REACH directive 2011/65/EU - RoHS directive 2004/108/EC - electromagnetic compatibility 2012/19/EU - WEEE directive
pollution degree	2
ambient air temperature for operation	0...55 °C SSD 0...55 °C Cfast card 0...45 °C HDD 0...45 °C Mini PCIe
ambient air temperature for storage	-20...60 °C
relative humidity	10...95 % non-condensing
operating altitude	2000
vibration resistance	1 gn 5...500 Hz HDD 2 gn 5...500 Hz SSD 2 gn 5...500 Hz Cfast card
