Schneider HMIG2U Standard Box for Universal Panel,HMIG2U, Schneider

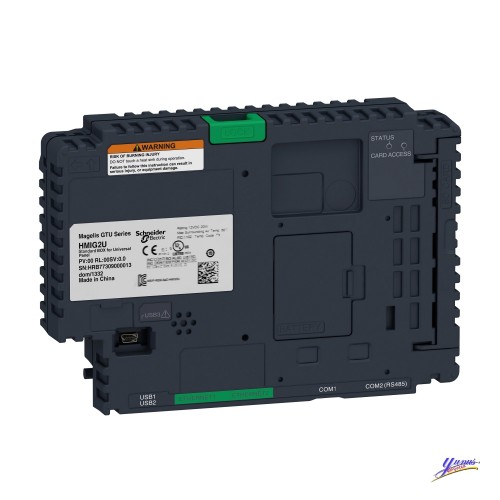

Schneider HMIG2U Standard Box for Universal Panel
| range of product |
Magelis GTU
|
|
|---|---|---|
| product or component type |
Base unit
|
|
| device short name |
Standard Box
|
|
| processor name |
CPU RISC 600 MHz
|
|
| operating system |
Magelis
|
|
| realtime clock |
Built-in
|
|
| software package |
Vijeo Designer run time 8000 variables
|
|
| product compatibility |
Siemens
Allen-Bradley (Rockwell Automation) ABB Omron Mitsubishi |
| range compatibility |
Magelis GTU
|
|
|---|---|---|
| data storage equipment |
1 GB built-in flash memory
|
|
| port Ethernet |
10BASE-T/100BASE-T
|
|
| memory description |
Backup memory 512 kB NVRAM
Internal 256 MB RAM 2 x 13 mm board |
|
| number of slots |
1 SD card
|
|
| type of cooling |
Natural convection
|
|
| integrated connection type |
USB 2.0 port mini B USB
Ethernet TCP/IP with 2 RJ45 USB 2.0 port with 2 USB type A COM1 serial link SUB-D 9 RS232C, transmission rate: 2400...115200 bps COM2 serial link RJ45 RS485, transmission rate: 187.5 kbps |
|
| communication port protocol |
Modbus
Uni-Telway Modbus TCP/IP |
|
| [Us] rated supply voltage |
12...24 V DC power supply
|
|
| local signalling |
LED steady green operating status (RUN)
LED faded green stand-by LED flashing orange software starting up LED steady red power ON LED alternate green, orange and red module error (ERR) LED alternate red/orange boot error LED alternate green/red connection error |
|
| depth |
45 mm
|
|
| height |
131 mm
|
|
| width |
188 mm
|
|
| product weight |
0.9 kg
|
| standards |
CSA C22.2 No 142
ANSI/ISA 12-12-01 CSA C22.2 No 213 class I division 2 IEC 61132-2 UL 508 |
|
|---|---|---|
| product certifications |
EAC
KC ATEX RCM CUL IEC-Ex GL CULus CE |
|
| resistance to fast transients |
1 kV signal ports IEC 61000-4-4
2 kV power ports IEC 61000-4-4 |
|
| resistance to electrostatic discharge |
6 kV contact discharge EN/IEC 61000-4-2 level 3
8 kV air discharge EN/IEC 61000-4-2 level 3 |
|
| pollution degree |
2 conforming to EN 61131-2 Ed.3
|
|
| electromagnetic compatibility |
Electrostatic discharge immunity test EN/IEC 61000-4-2 level 3
|
|
| ambient air temperature for storage |
-20...60 °C
|
|
| relative humidity |
10...90 % non-condensing
|
|
| ambient air temperature for operation |
0...60 °C
|
|
| operating altitude |
2000 m
|
|
| vibration resistance |
3.5 mm constant amplitude 5...9 Hz X, Y, Z directions for 10
cycles (approx. 100 min) conforming to EN/IEC 61131-2
9.8 m/s² 9...150 Hz X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2 |
|
| shock resistance |
147 m/s² conforming to EN/IEC 61131-2 X, Y, Z directions for 3
times
|
|
| environmental characteristic |
Corrosive gas free
|
