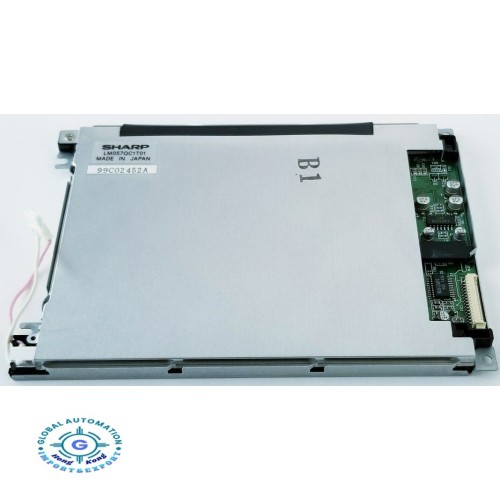

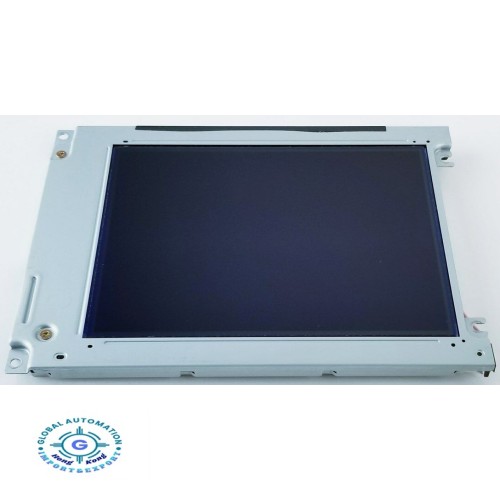

Sharp LM057QC1T1 5.7" 320x240 Lcd Panel ,LM057QC1T1, Sharp

Sharp LM057QC1T01 General Features

Panel Brand	Sharp	Panel Model	LM057QC1T01
Panel Size	5.7"	Panel Type	CSTN-LCD , LCM
Resolution	320(RGB)×240 , QVGA	Pixel Format	RGB Vertical Stripe
Display Area	115.2(W)×86.4(H) mm	Bezel Opening	121.3(W)×92.6(H) mm
Outline Size	154.6(W)×114.8(H) mm	Surface	-
Brightness	180 cd/m² (Typ.)	Contrast Ratio	40:1 (Typ.) (TM)
Viewing Angle	50/50/35/60 (Typ.)(CR≥2)	Display Mode	STN, Normally Black, Transmissive
Best View on	6 o'clock	Response Time	450/100 (Typ.)(Tr/Td)
Display Colors	Color	Lamp Type	1 pcs CCFL , 25K hours , Without Driver
Frequency	75Hz	Touch Screen	Without
Panel Weight	200g (Typ.)	Application	industrial
Signal Interface	Parallel Data (8-bit) , 15 pins , Connector
Input Voltage	3.3/5.0V (Typ.)(VDD)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C
