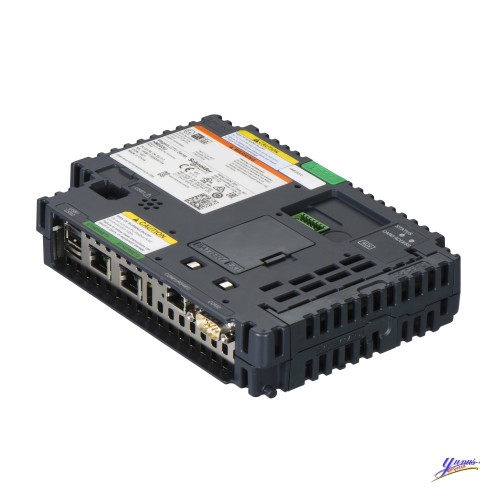

Schneider HMIG3UFC Premium BOX - for Magelis GTU Universal Panel
| range of product |
Magelis GTU
|
|
|---|---|---|
| product or component type |
Base unit
|
|
| device short name |
Premium Box
|
|
| processor name |
CPU RISC 600 MHz
|
|
| operating system |
Magelis
|
|
| software package |
Vijeo Designer run time
|
| range compatibility |
Magelis GTU
|
|
|---|---|---|
| data storage equipment |
1 GB SD card
|
|
| port Ethernet |
10BASE-T/100BASE-TX/1000BASE-T
|
|
| memory description |
Internal 256 MB RAM
Backup memory 512 kB NVRAM |
|
| type of cooling |
Natural convection
|
|
| integrated connection type |
USB 2.0 port mini B USB
Auxiliary port terminal block Expansion unit fieldbus card Ethernet TCP/IP with 2 RJ45 COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s COM1 serial link RJ45 RS485, transmission rate: 187.5 kbit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 187.5 kbit/s USB 2.0 port with 2 USB type A |
|
| communication port protocol |
Modbus
Modbus TCP/IP Uni-Telway |
|
| [Us] rated supply voltage |
12...24 V DC power supply
|
|
| depth |
45 mm
|
|
| height |
131 mm
|
|
| width |
188 mm
|
|
| product weight |
0.9 kg
|
|
| number of slots available for expansion |
2 SD card
|
| standards |
CSA C22.2 No 142
ANSI/ISA 12-12-01 CSA C22.2 No 213 class I division 2 IEC 61132-2 UL 508 |
|
|---|---|---|
| product certifications |
CCS
EAC KC ATEX RCM CUL IEC-Ex GL ABS BV DNV LR RINA CULus CE |
|
| pollution degree |
2 conforming to EN 61131-2 Ed.3
|
|
| electromagnetic compatibility |
Electrostatic discharge immunity test EN/IEC 61000-4-2 level 3
|
|
| ambient air temperature for storage |
-20...60 °C
|
|
| relative humidity |
10...90 % non-condensing
|
|
| ambient air temperature for operation |
0...60 °C
|
|
| operating altitude |
2000 m
|
|
| vibration resistance |
3.5 mm constant amplitude 5...9 Hz conforming to EN/IEC 61131-2
9.8 m/s² 9...150 Hz conforming to EN/IEC 61131-2 |
