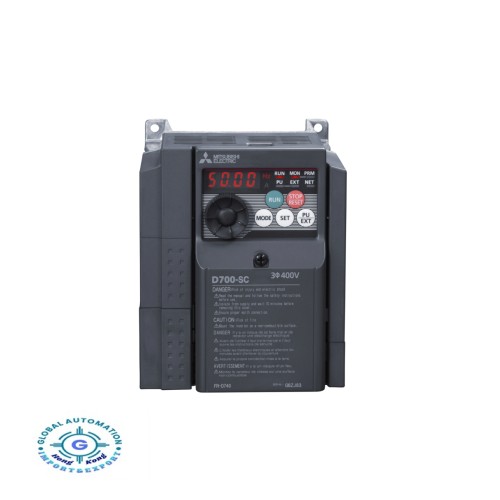

Mitsubishi FR-D740-012SC-EC Inverter,FR-D740-012S, Mitsubishi
Mitsubishi FR-D740-012SC-EC Inverter; Rated Power: 0,4kW; 3x380-480V; Rated Current: 1,2A@50°C; IP20
INVERTER
| Type | FR-D700 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 325 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 1,2 |
| Rated Motor Capacity ND (kW) | 0,4 |
| Control Method | GEN-PUR. MAGN. FLUX VEC. CTRL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| Type of Terminal Block | PLUG |
| Expandable | NO |
| RS-485 | 1 |
| Built-In Network | MODBUS-RTU |
| Protection Class | IP20 |
| Power Loss (W) | 40 |
| Standby Power Consumption (W) | 10,5 |
| Leakage Current (mA) | 1 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 108 |
| Height (mm) | 128 |
| Depth (mm) | 129,5 |
| Weight (kg) | 1,2 |
ORDER CODES
| European Order Code | 247601 |
| Global Order Code | FRD740SC012 |
CLASSIFICATION DATA
| Product hierarchy | IAK23801 |
| Class Description | FA-Inverter: Inverter |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | A |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 1.58 KG |
| Volume | 7.315 CDM |
| Length | 22 CM |
| Width | 19 CM |
| Height | 17,5 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85044090 |
| Country of Origin | CN |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi FR-D740-012SC-EC Inverter,FR-D740-012S
- Brand: Mitsubishi
- Product Code: FR-D740-012SC-EC
- Availability: 1000
