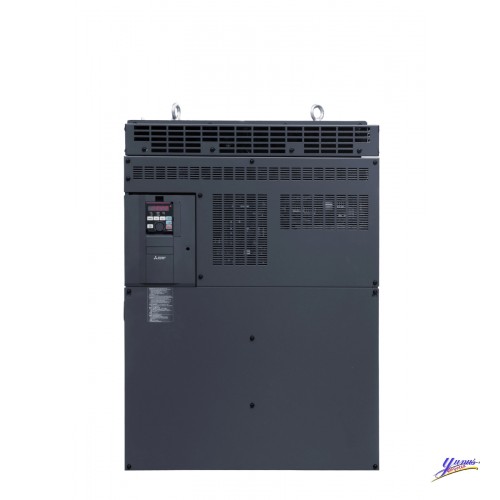

Mitsubishi FR-AF840-06830-60 Inverter Body,FR-AF840-068, Mitsubishi
Mitsubishi FR-AF840-06830-60 Inverter Body AC; Pn: 250-355kW; 3x380-500V;In max: 683A;(280kW; 547A); IP00
INVERTER
| Type | BASE UNIT FOR INV A840/F840 |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current SLD (A) | 683 |
| Rated Output Current LD (A) | 610 |
| Rated Output Current ND (A) | 547 |
| Rated Output Current HD (A) | 481 |
| Rated Motor Capacity SLD (kW) | 355 |
| Rated Motor Capacity LD (kW) | 315 |
| Rated Motor Capacity ND (kW) | 280 |
| Rated Motor Capacity HD (kW) | 250 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| Type of Terminal Block | PLUG |
| Expandable | YES |
| RS-485 | 2 |
| USB | 2 |
| Protection Class | IP00 |
| Power Loss (W) | 7550 |
| Standby Power Consumption (W) | 125 |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 680 |
| Height (mm) | 1010 |
| Depth (mm) | 380 |
ORDER CODES
| European Order Code | 307194 |
| Global Order Code | FRAF84006830 |
CLASSIFICATION DATA
| Product hierarchy | IAK244 |
| Class Description | FA-Inverter: Inverter |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | A |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 181.5 KG |
| Volume | 506.22 CDM |
| Length | 118 CM |
| Width | 82,5 CM |
| Height | 52 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85044090 |
| Country of Origin | CN |
LIFE CYCLE
| Predecessor | 169839 |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi FR-AF840-06830-60 Inverter Body,FR-AF840-068
- Brand: Mitsubishi
- Product Code: FR-AF840-06830-60
- Availability: 1000
