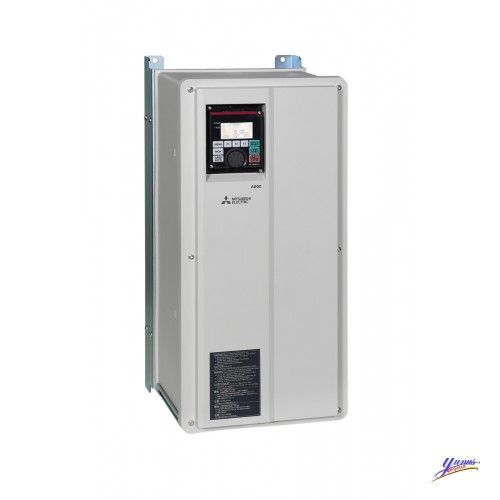

Mitsubishi FR-A846-00038-2-60L2 Inverter,FR-A846-0003, Mitsubishi
Mitsubishi FR-A846-00038-2-60L2 Inverter AC; Pn: 0,75-1,5kW; 3x380-500V;In max: 3,5A;(0,75kW; 2,54A); IP55
INVERTER
| Type | FR-A800 ADVANCED INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current LD (A) | 3,5 |
| Rated Output Current ND (A) | 2,5 |
| Rated Motor Capacity LD (kW) | 1,5 |
| Rated Motor Capacity ND (kW) | 0,75 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | YES |
| Display | FR-LU08 |
| Display Type | GRAPHICAL DISPLAY |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| Type of Terminal Block | PLUG |
| Expandable | YES |
| RS-485 | 2 |
| USB | 2 |
| Built-In Network | MODBUS-RTU |
| Protection Class | IP55 |
| Power Loss (W) | 70 |
| Standby Power Consumption (W) | 19 |
| Leakage Current (mA) | 2 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 238 |
| Height (mm) | 520 |
| Depth (mm) | 271 |
| Weight (kg) | 15 |
ORDER CODES
| European Order Code | 280793 |
| Global Order Code | FRA84600038L2 |
CLASSIFICATION DATA
| Product hierarchy | IAK24106 |
| Class Description | FA-Inverter: Inverter |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 19 KG |
| Volume | 78.802 CDM |
| Length | 62 CM |
| Width | 31 CM |
| Height | 41 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85371091 |
| Country of Origin | CN |
LIFE CYCLE
| Predecessor | 163797 |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi FR-A846-00038-2-60L2 Inverter,FR-A846-0003
- Brand: Mitsubishi
- Product Code: FR-A846-00038-2-60L2
- Availability: 1000
